The Rig Today

My current amp is the excellent VOX AD30VT valvetronix modelling amplifier. At 30W it is plenty powerful enough for me. On stage the amp is put on a stand to angle it up so that I can hear it. A microphone and bloody big PA make sure the audience can hear!

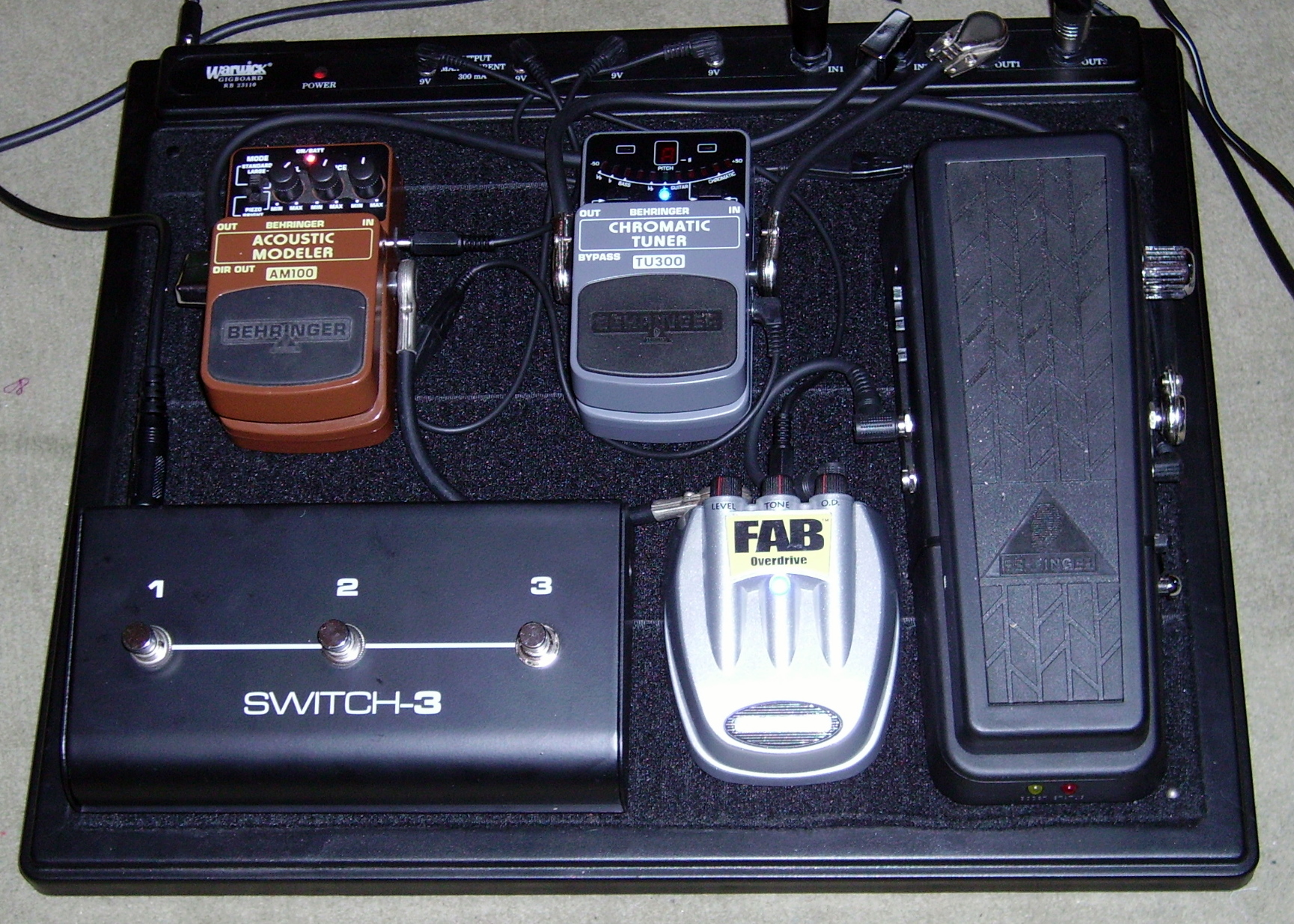

By taking advantage of the built in effects on the amp I keep my pedal board very simple. I contains just four pedals and a foot controller for the VOX amp.

So, looking at each component in turn. The tuner is a no-brainer. got to be able to tune up quickly and silently on stage. The Wah pedal is a new addition. I'm still getting the hang of it. The overdrive was a freebie with a magazine subscription and is actually much better than it deserves to be for the price. The acoustic simulator is a bit of fun. It works quite well with single coil pickups, but can't compete for sound with a proper electro-acoustic.

The pedals are mounted on a Warwick Gig board. This is a plastic affair with Velcro fastenings for the pedals and built in power regulation. It comes with a bag whick is big enough to hold the populated board. Acquiring this for just £25 from a clearance sale saved me a lot of work, because I originally intended to build my own board from plywood covered in carpet tiles. However, I was not impressed with the build of the Warwick board. The main problem I had was with the power supply, which melted on first use. I decided to make my own arrangements for power. I like the idea of keeping the mains well away from the performing area of the stage, so I still use a plug top power supply to provide 12 Volts over a long supply lead. The power regulator in the board is still utilised to reduce the voltage to the 9V needed for the pedals. I replaced the original 3.5 TR socket with a proper power connector. This will prevent any potential short circuits if the power plug is not correctly inserted.
